NFPA 11 Foam Collection Equipment

Ancillary products for use in taking produced foam samples

Equipment designed to enable produced foam samples to be taken correctly.

  • For use in calculating:

  • 25% drainage
  • Foam expansion
  • Built to International Foam Standard NFPA 11: 2016 Annex D specifications.

ENQUIRE TODAY


Please select the item you want to view:


NFPA 11 Foam Collection Board

  • For use in calculating 25% Drainage and Foam Expansion.

  • Designed to hold NFPA 11 Collection Cylinder (included in Foam Concentrate Test Kit or available separately)
  • Constructed from painted stainless steel.

  • Overall dimensions: 125 (H) x 63 (W) x 71 (D) cm

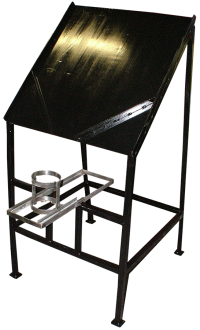

 Foam Collection Testing Board

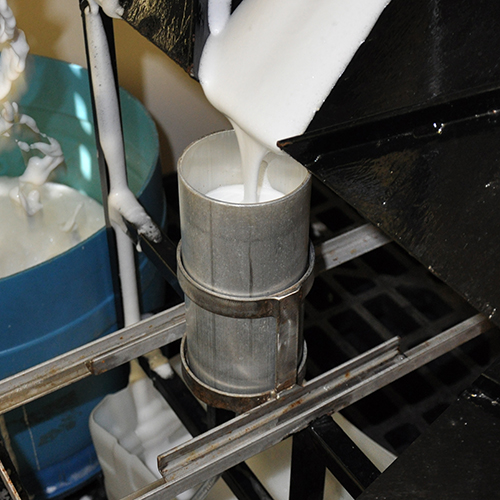

Foam Collection Cylinder used with Foam Collection Board as part of Expansion and 25% Drainage calculation procedures:



 ENQUIRE TODAY

EXPANSION+DRAINAGE

Back to top


NFPA 11 Foam Collection Cylinder

  • For use in calculating 25% Drainage and Foam Expansion.
  • Includes tube and draw off valve.
  • Holds 1600ml of produced foam
  • Designed to fit in NFPA 11 Collection Board, NFPA 11 Foam Collection Tripod and NFPA 11 Foam Collection Stand (available separately)
  • Constructed from stainless steel.
  • Overall dimensions: 22 (H) x 10 (Ø) cm (excluding tube and valve)
  • Weight: 0.6kg
CYLINDER

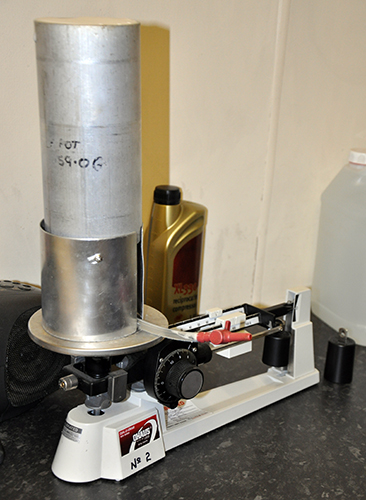

Foam Collection Cylinder used with Foam Collection Stand as part of Expansion calculation procedure:



 ENQUIRE TODAY

CYLINDER+STAND+SCALES

Back to top


NFPA 11 Foam Collection Tripod

  • For use in calculating 25% Drainage and Foam Expansion.

  • Designed to hold NFPA 11 Collection Cylinder (included in Foam Concentrate Test Kit or available separately)
  • Constructed from painted stainless steel.

  • Overall dimensions: 47.5 (H) x 54.5 (W) x 54.5 (D) cm

  • Weight: 6.2kg
 Foam Testing Tripod

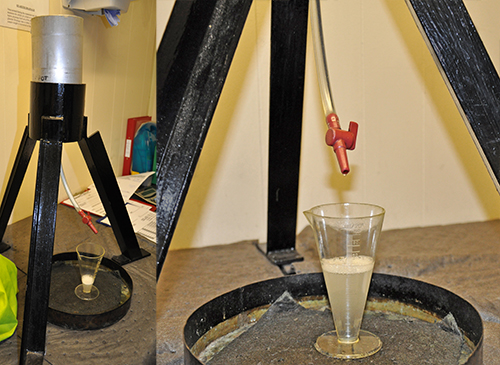

Foam Collection Tripod used with Foam Collection Cylinder as part of 25% Drainage calculation procedure:



 ENQUIRE TODAY

CYLINDER+TRIPOD

Back to top


NFPA 11 Foam Collection Stand

  • For use in calculating 25% Drainage and Foam Expansion.

  • Designed to hold NFPA 11 Collection Cylinder (included in Foam Concentrate Test Kit or available separately)
  • Constructed from stainless steel.

  • Overall dimensions: 12 (H) x 11 (Ø) cm

  • Weight: 0.2kg
Testing Stand


Foam Collection Stand used with Foam Collection Cylinder on scales as part of Expansion calculation procedure:



 ENQUIRE TODAY

CYLINDER+STAND+SCALES

Back to top


Disclaimer

  • It is highly recommended that Foam samples are always sent to a reputable Foam Test Laboratory for independent, third party evaluation on at least an annual basis.
  • Oil Technics cannot be held responsible for any incorrect use or any incorrect results derived from using its Foam Test Kits or Foam Test Equipment; or for any loss, personal injury or property damage, however caused, resulting from the use of our Test Kits or Equipment.
